Multifiber Cables

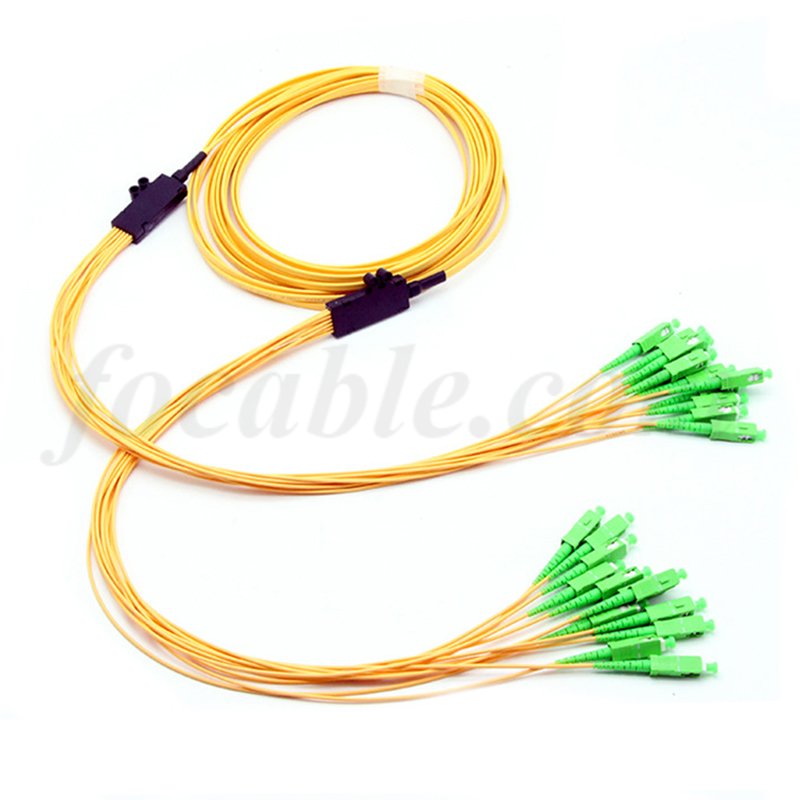

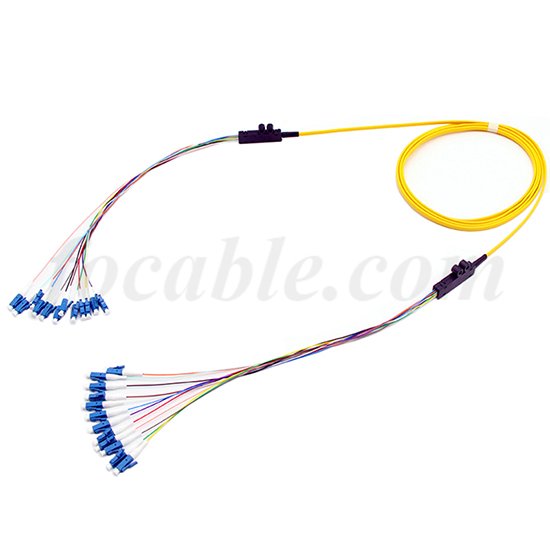

Fiber optic fan-outs are designed for patch panels or cable ducts where space-saving is required. For cables that run from patch panels to equipment or patch panels to patch panels, the fan-out cords with either ribbon cables or distribution cables can save space for cable ducts. Distribution cables are more rugged than ribbon cables.

Details about Multifiber Cables

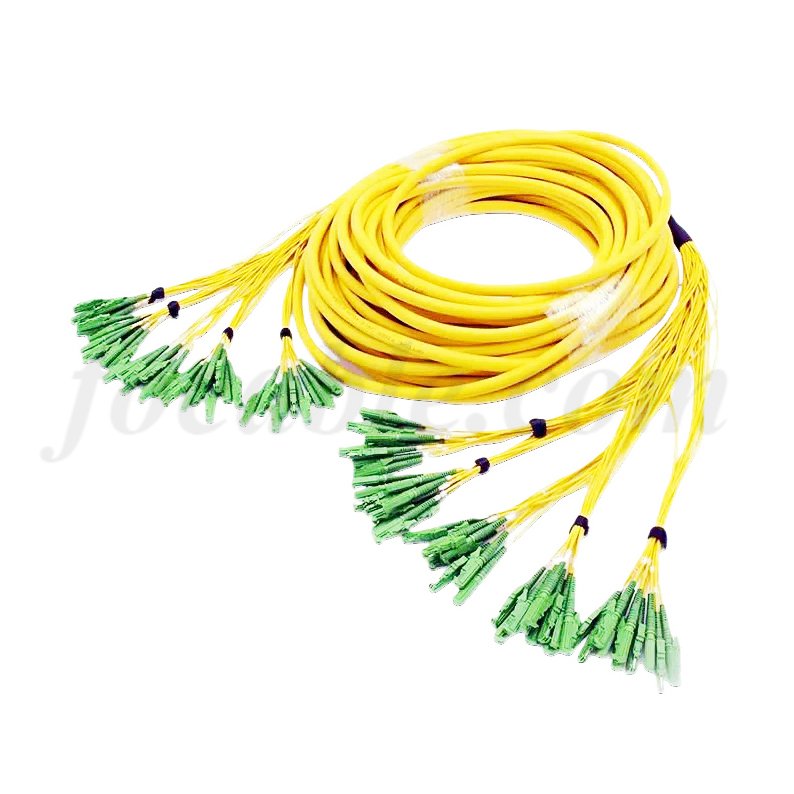

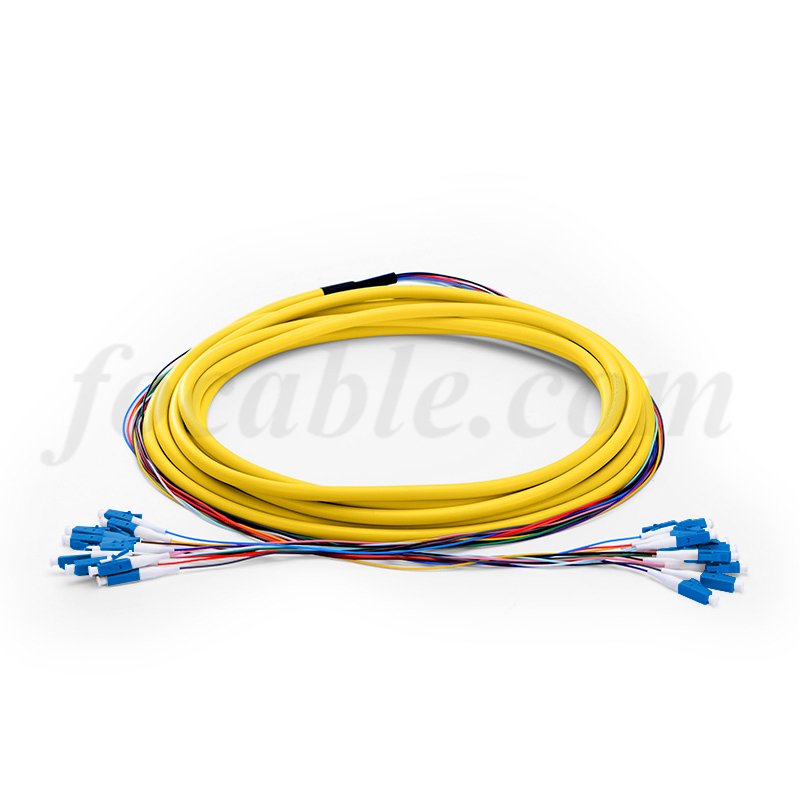

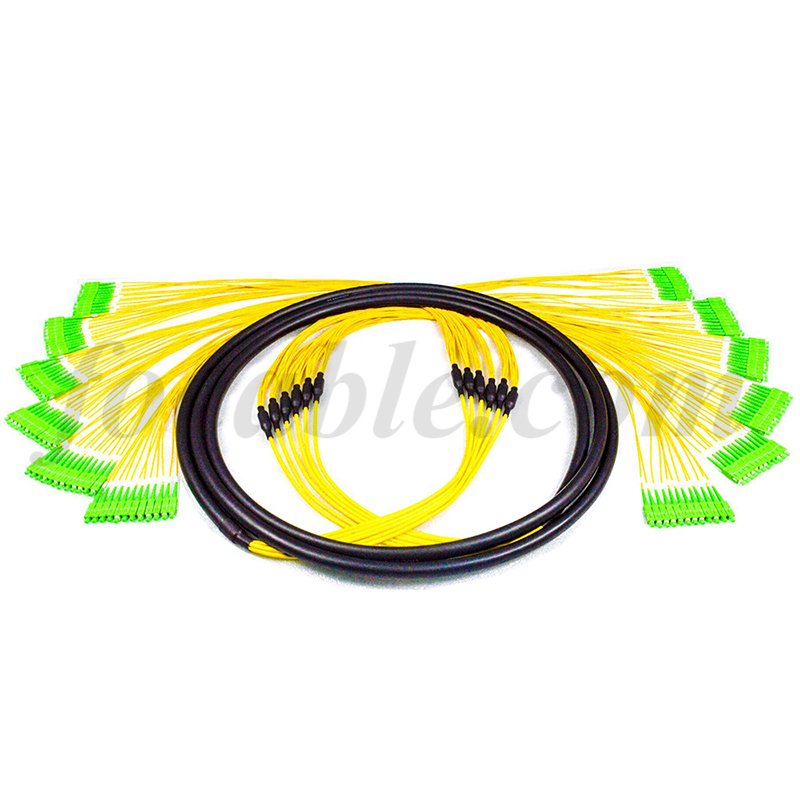

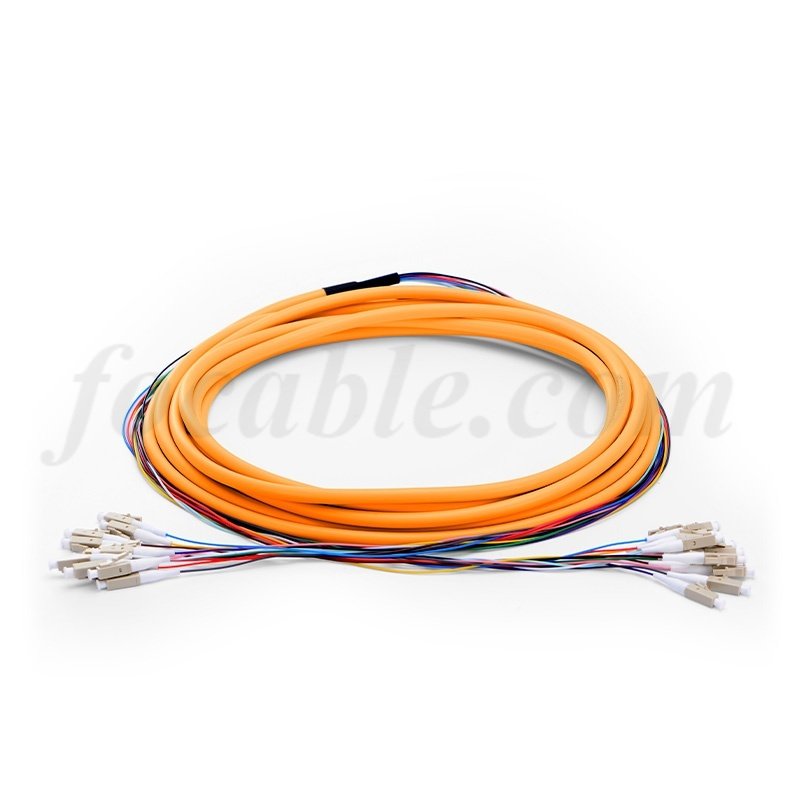

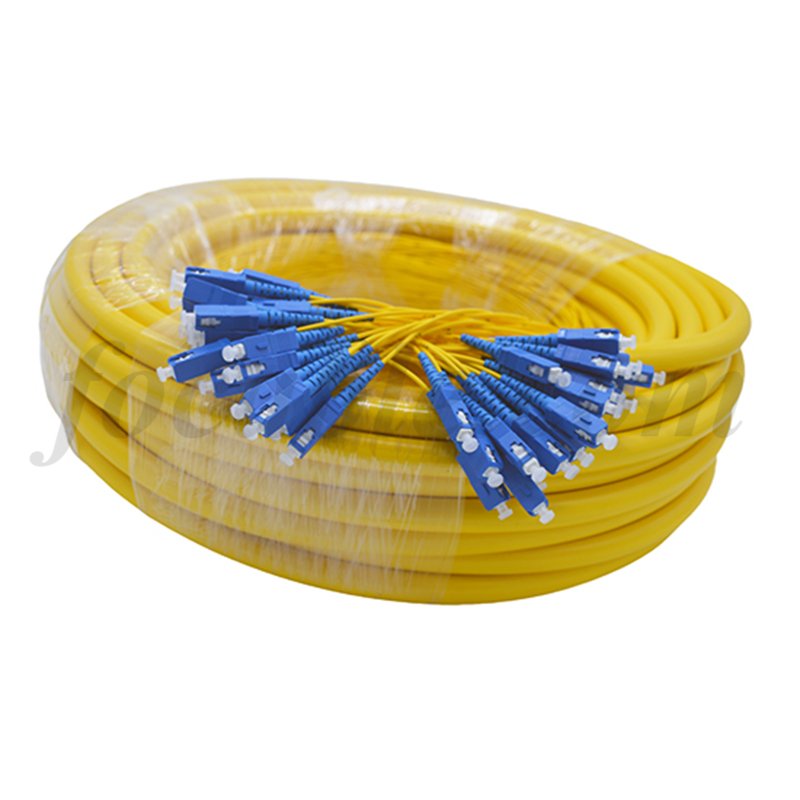

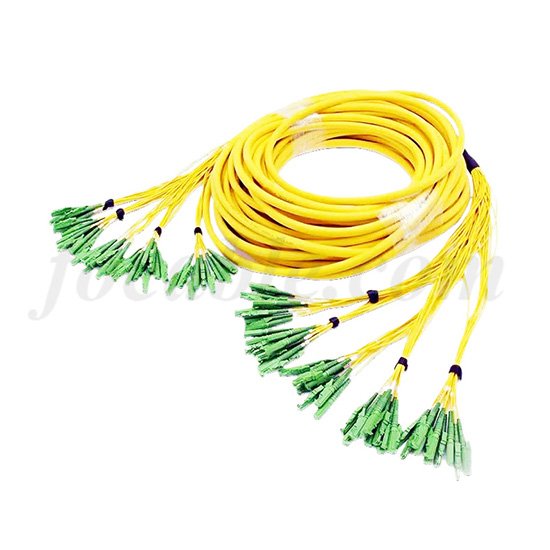

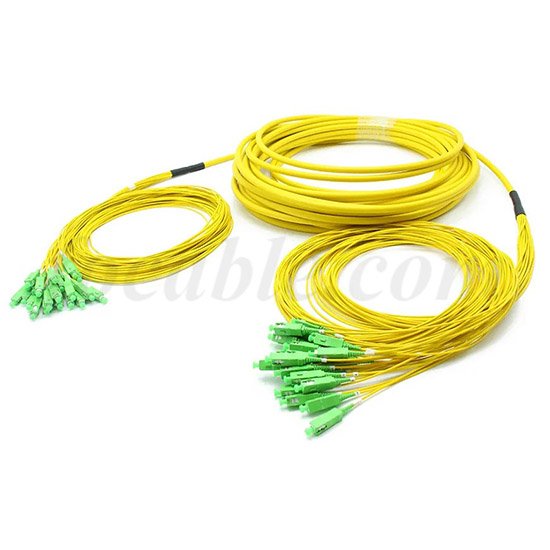

Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. The fiber optic cable has industry standard flammability rating jacket and the connector meets EIA/TIA 604-2 for high speed cabling networks.

The indoor pre-terminated multifiber cables, refer to the 4, 6, 8, 12, 24, 48, 72, 96, 144 fibers. We also provide a full set of customized services, such as length, connector, fiber grade, specification, cable jacket and pulling eye etc. Highly configurable multi-fiber pre-terminated cable assemblies are engineering for maximum performance and crafted ensuring superior quality. OS2, OM1, OM2, OM3, OM4 and OM5 terminated cable are available.

Features

Low insertion loss and high back reflection loss.
High quality zirconia ferrules.
Good repeatability and interchangeability.
Flame-retardant, rugged and durable jacket.
OS2/OM1/OM2/OM3/OM4/OM5 are available.
Factory terminated and tested for end face.
Available in simplex, duplex, and pigtail configurations
LC, SC, ST, FC, E2000, MU, MTRJ, MPO/MTP connector options
Green Production, CE, RoHS Standard.

Applications

Telecommunication Networks
CATV Networks
LAN, WAN, Test &Measurement
Active Device Termination
Data System Networks
Military industry
Medical

Parameters

Connector Loss	≤0.30dB	Interchangeability	≤0.2dB
Connector Return Loss	SMF: ≥ 60dB (APC) SMF: ≥ 50dB (UPC) MMF: ≥ 30dB (UPC)	Test Wavelength	SMF: 1310/1550nm MMF: 850/1300nm
Attenuation at 1310nm	G.657.A1: 0.36dB/km G.657.A2: 0.4dB/km	Attenuation at 1550nm	G.657.A1: 0.22dB/km G.657.A2: 0.25dB/km
Attenuation at 850nm	3.0dB/km	Attenuation at 1300nm	1.0dB/km
Operating Temperature	-40~75℃	Storage Temperature	-45~85℃

Fiber Count	4/6/8/12/24/48/96/144 Fiber	Cable Type	Bare ribbon, jacket ribbon or distribution cable
Fan-out Diameter	0.9mm/2.0mm/3.0mm	Connector Durability	1000 times
Connector Types	LC/SC/ST/FC/E2000/MTRJ/MU/MPO/MTP	Connector Ferrule	Zirconia Ceramic
Fiber Type SM	G.652D/G.655/G.657A1/G.657A2/G.657B3	Fiber Type MM	OM1/OM2/OM3/OM4/OM5
Fiber Brand	YOFC, Corning, Sumitomo, Fujikura	Cable Jacket	PVC(Riser/OFNR)/LSZH/Plenum(OFNP)
