MPO/MTP 0.9mm fiber optic patch cords are designed for high-density data center applications, offering reliable multimode connectivity with precision-polished contacts, ideal for fan-out applications in server racks and patch panels.
MPO/MTP fan out 0.9 mm patch cables are economical solution for mass-termination of fiber and are designed for low loss and standard loss SM and MM applications. Ruggedized round cable, oval cable and bare ribbon options are available. And The color coded housings are available to differentiate fiber type, polish type and/or connector grade. They are good in repeatability and exchangeability.

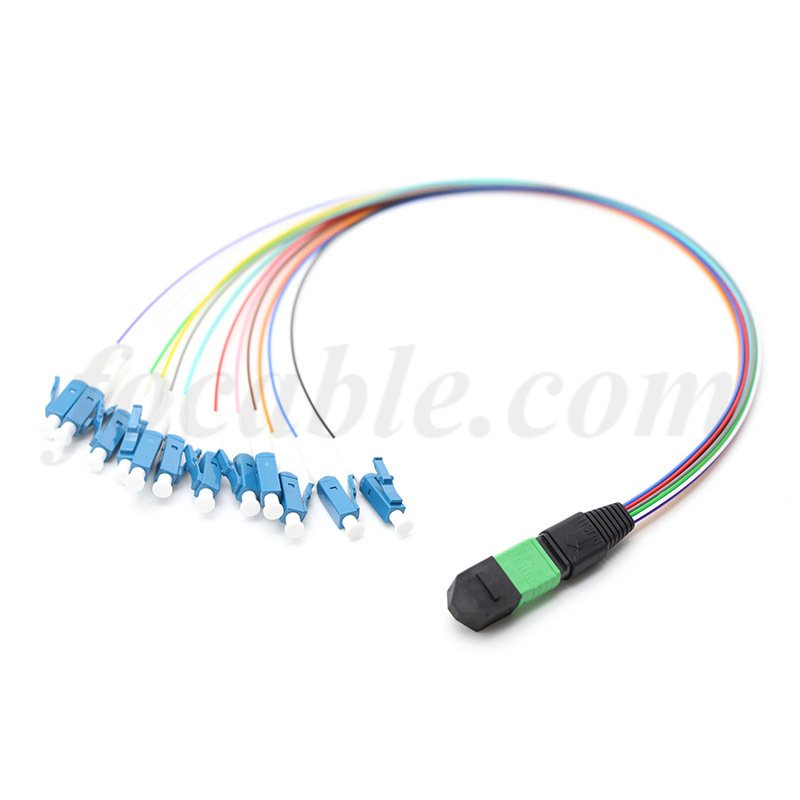

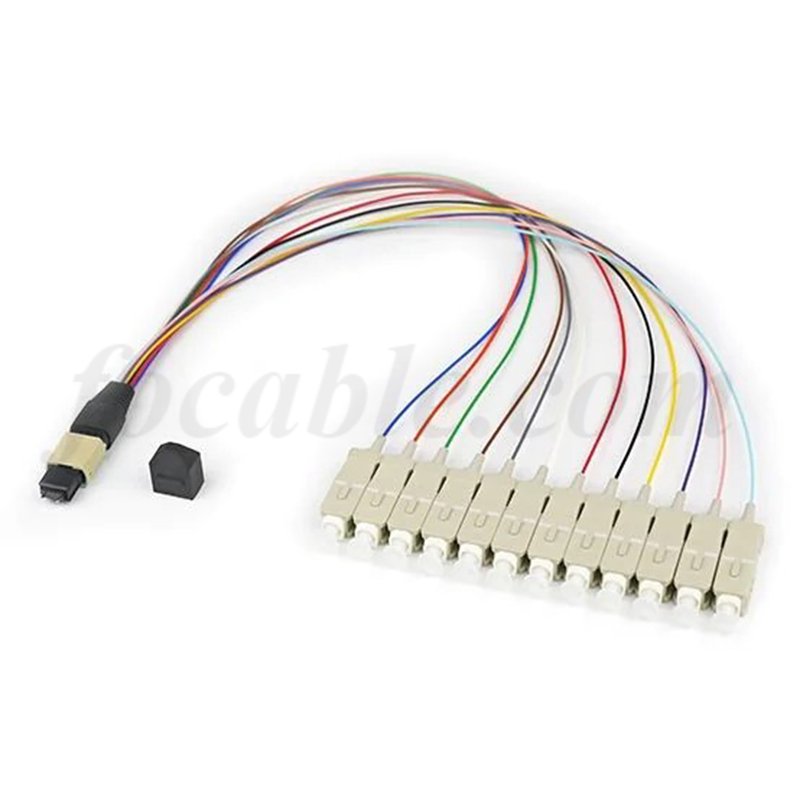

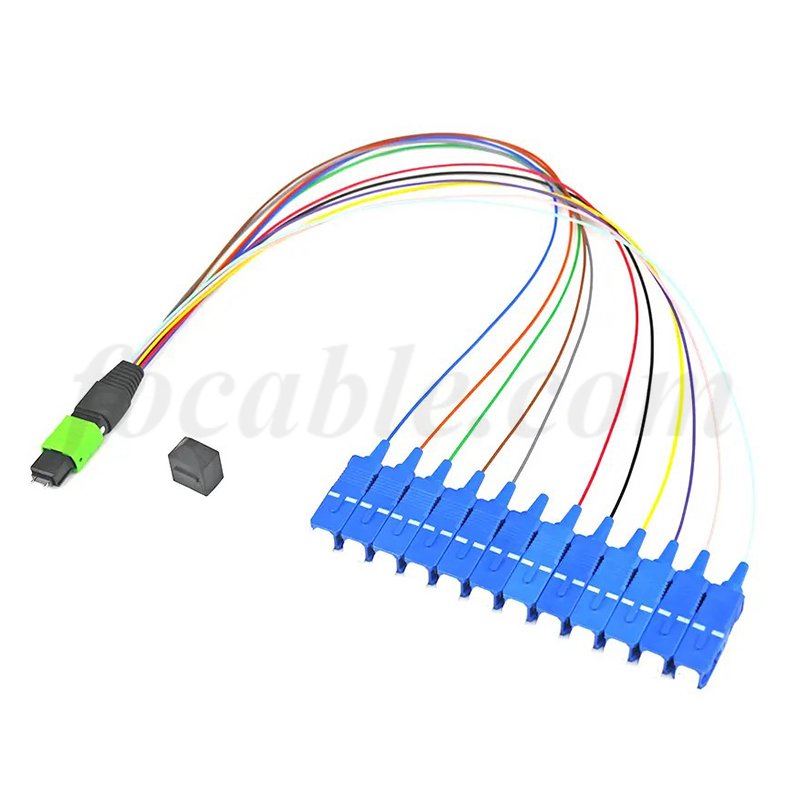

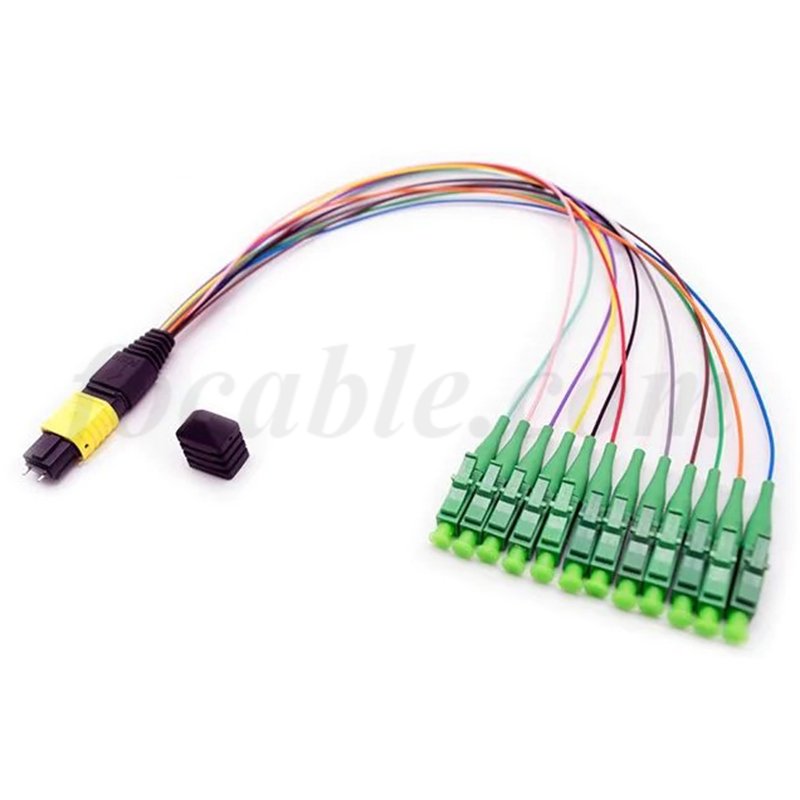

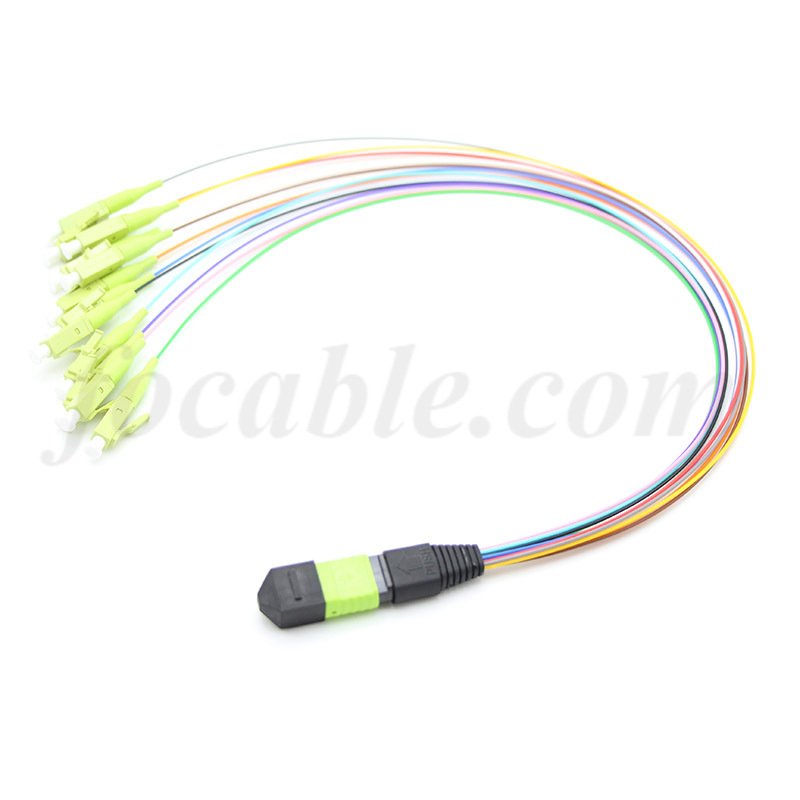

MPO- LC/SC/FC/ST fan-out patch cords are available in 6, 8, 12, and 24 fiber counts, with the option of 0.9mm jacket diameters. These Fan-out cable assemblies are factory terminated and tested and provide significant installation time savings. They are ideal for making connections within rack mounted or wall mounted fiber enclosures that utilize single fiber connectors. And they’re specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles

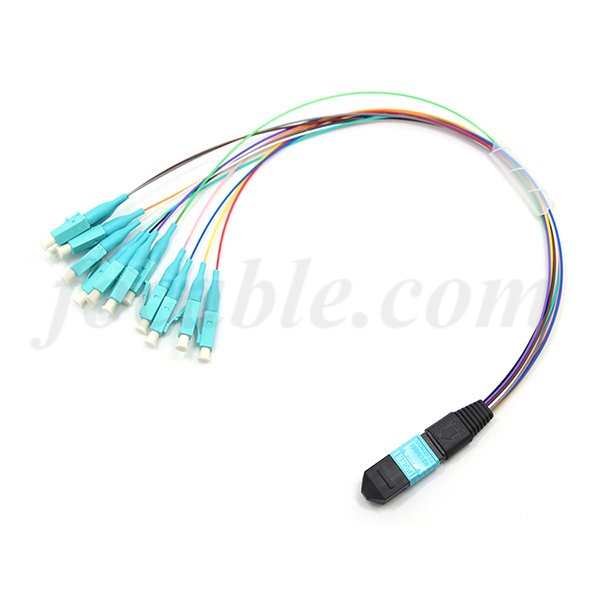

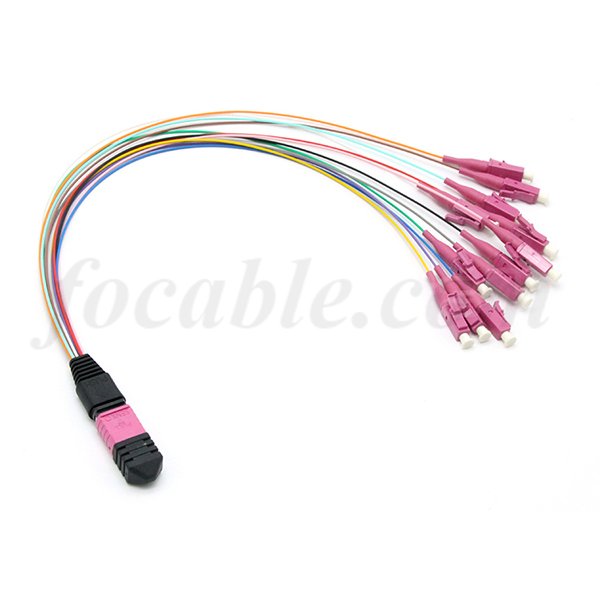

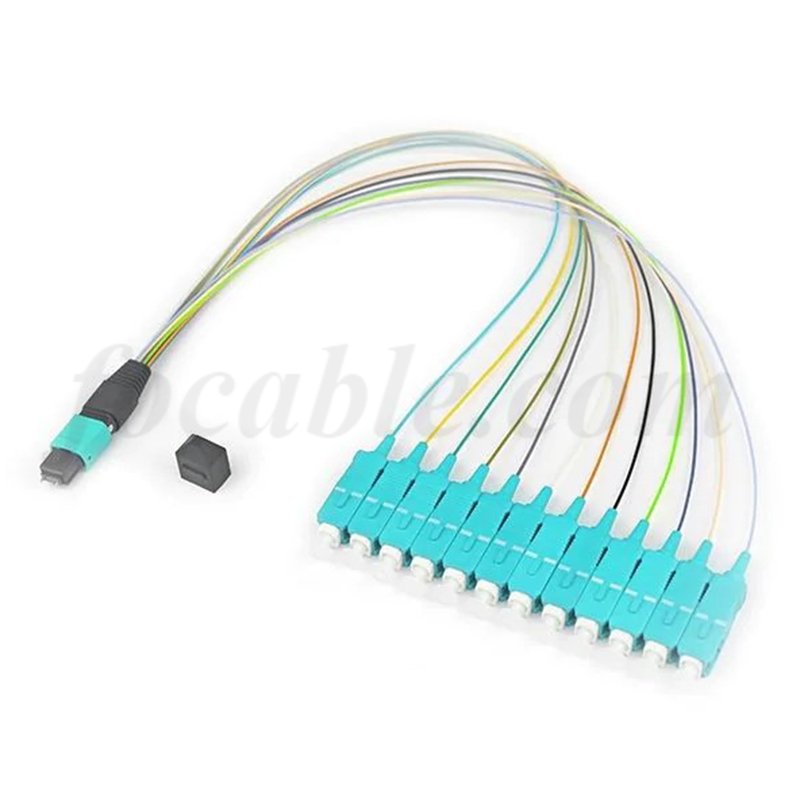

OM3/OM4 12F MPO- LC/SC/FC/ST Fan-out 0.9mm cable are optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications. They are designed for MPO-LC LGX module cassettes which are terminated with MPO and LC/SC/FC/ST connector on each end.
MPO breakout cables are terminated with a female or male MTP/MPO connector on one end and a LC, FC, SC, or ST connectors on the other end. Typically, these breakout cables are ideal for short-range 10G-40G and 25G-100G direct connections. MPO stands for Multifiber Termination Push On. Remember keeping fiber optic end faces clean is very important and a critical requirement for reliability and high-performance connection.
Connector | MPO/MTP | Fiber Mode | OS2/OM3/OM4/OM5 |
Polish Type | PC, APC | Cable Jacket | LSZH/OFNR/OFNP |
Fiber Count | 12F, 24F, 48F, 72F, 96F, 144F | Breakout Length | 0.5M |
Insertion Loss | SMF: ≤0.75dB (Standard) SMF: ≤0.35dB (Elite) | Insertion Loss | MMF: ≤0.5dB (Standard) MMF: ≤0.35dB (Elite) |
Return Loss | SMF: ≥ 60dB (APC) MMF: ≥ 20dB (PC) | Test Wavelength | SMF: 1310/1550nm MMF: 850/1300nm |
Attenuation at 1310nm | ≤0.4dB/km | Attenuation at 1550nm | ≤0.3dB/km |
Attenuation at 850nm | ≤3.5dB/km | Attenuation at 1300nm | ≤1.5dB/km |
Operating Temperature | -40~60℃ | Storage Temperature | -45~85℃ |
