Durable MTP/MPO couplers that provide quick connection for up to 72 optical fibers. Connection integrity is provided by adapter latches which are locked into place by a spring loaded sliding mechanism on the MTP/MPO connector plug.
Precision alignment is achieved with MTP/MPO connector guide pins combined with the tightly controlled guide pin holes on MT ferrules. Numerous single port and ganged configurations are available to satisfy a variety of applications. These MTP/MPO brand couplers are fully compliant with IEC Standard 61754-7 and TIA 604-5 Type MPO.

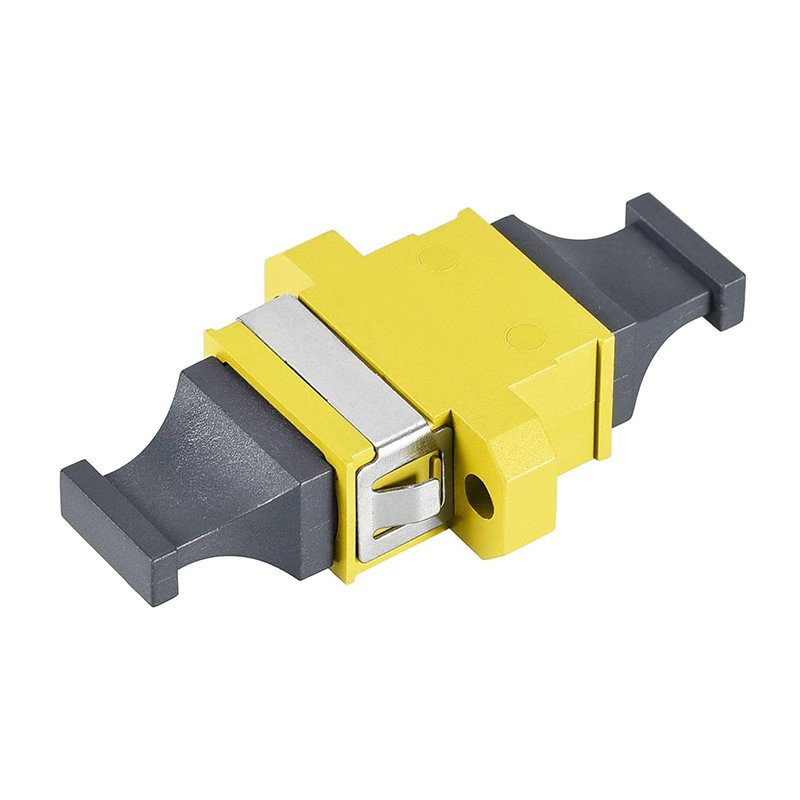

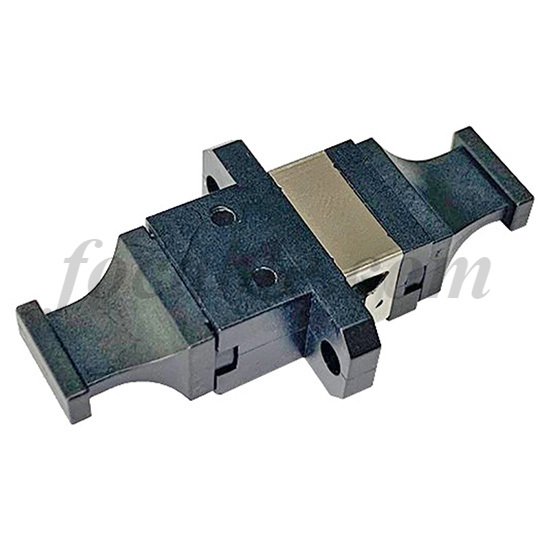

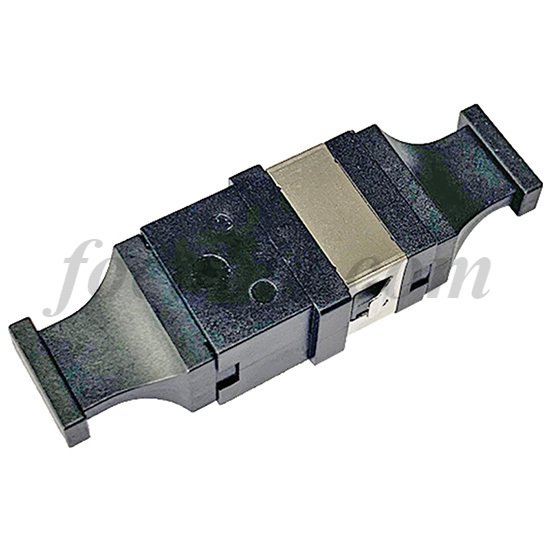

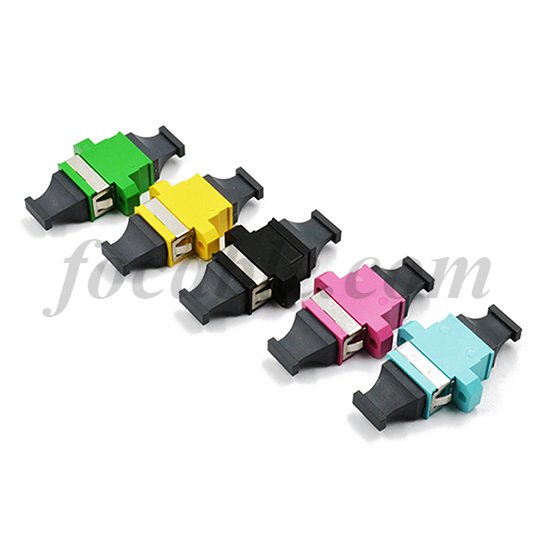

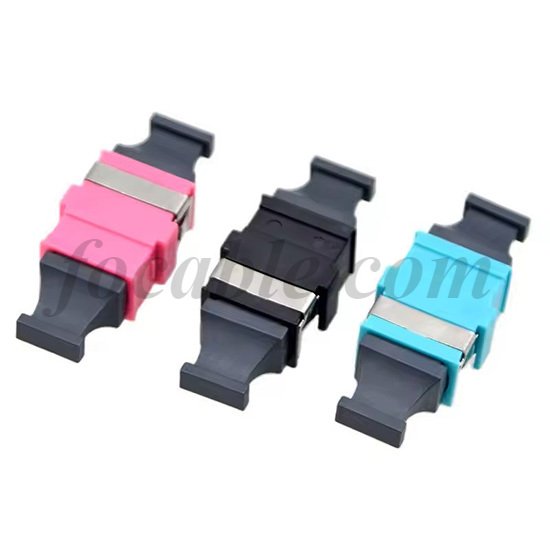

Our MPO/MTP adapter provides alignment for a male and female MPO/MTP connector. The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colors and with options for flange or flangeless body.
The MTP/MPO adapter has two types: key-up to key-down and key-up to key-up. It provides the connection between cable to cable or cable to equipment in the MTP/MPO style. It works for any MTP Connector from 4 fibers to 72 fibers, widely used in trunk cabling and cassettes. This adapter meets appropriate standards and is perfect for your parallel optics and MTP adapter needs.
Adapter Type | MTP/MPO | Keyway | Opposed, Aligned |
Adapter Port | Single | Footprint | Standard, SC |
Insertion Loss | ≤0.35dB | Durability | ≥1000 matings |
Flammability Rate | UL 94V-0 | Working Temperature | -25~70℃ |
