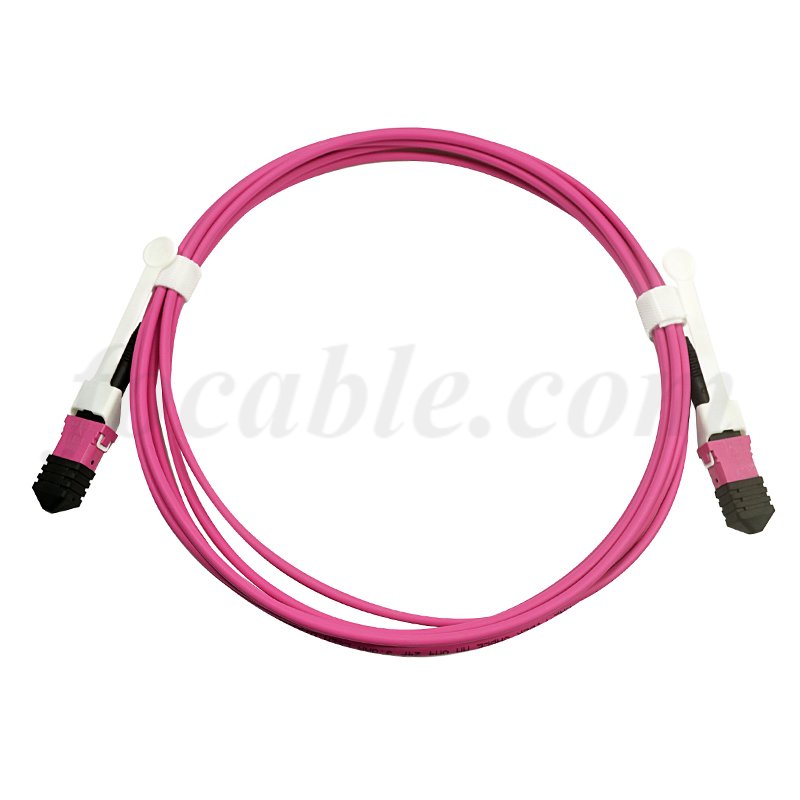

MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms. They feature push/pull tab connectors that offer maximum accessibility in high-density installations and install/remove with one hand.

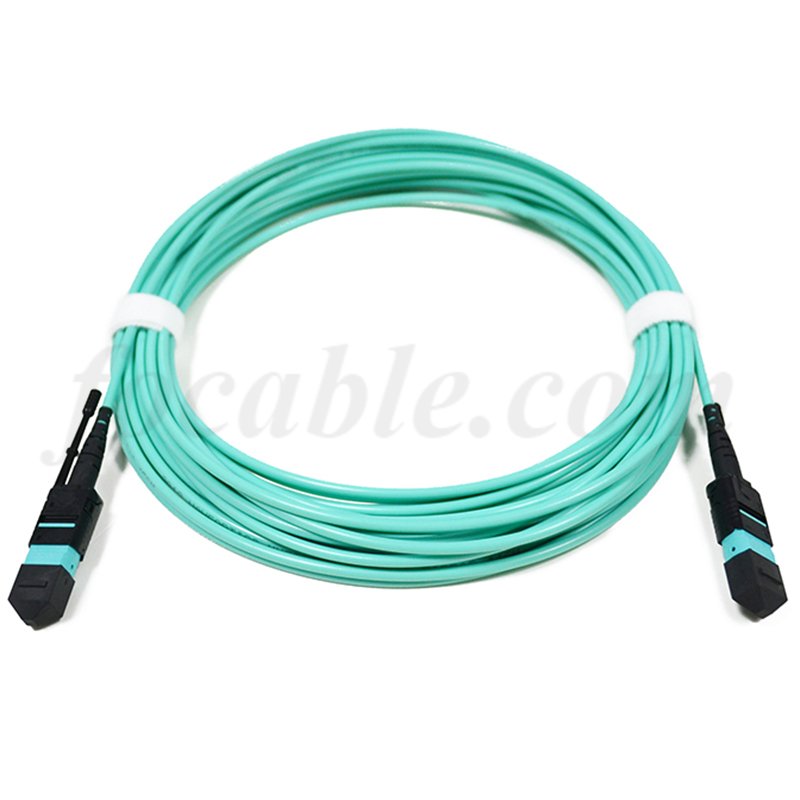

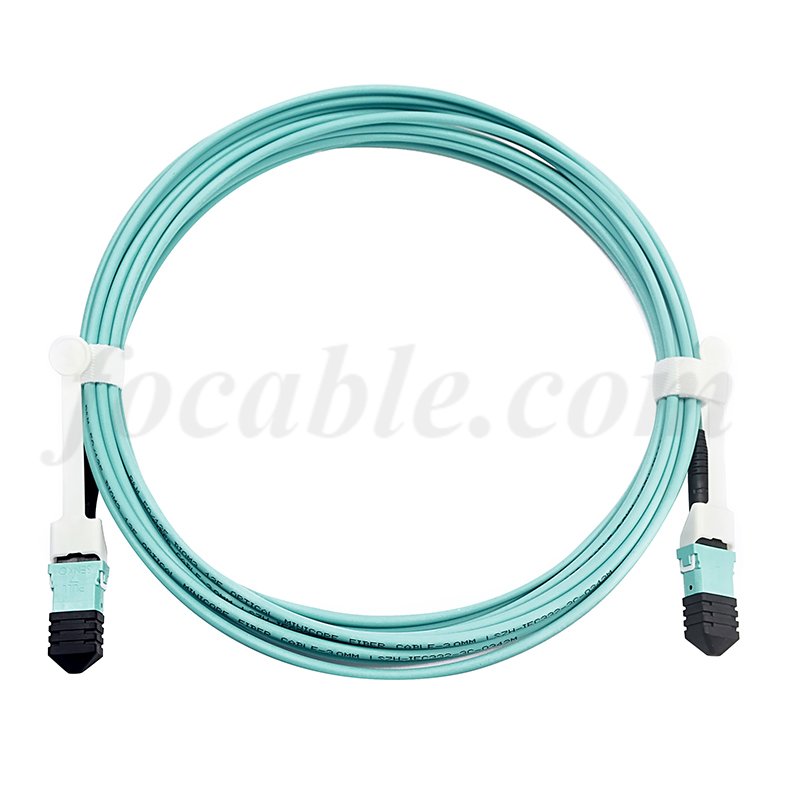

The MTP/MPO connector is approximately the same size of a SC connector, but it can accommodate 24 fibers and provide up to 24 times the density, thereby offering savings in circuit card and rack space. MTP/MPO OM3 patch cables with push/pull tabs are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 100 GbE.
MPO/MTP 12 x Fibers Cable Assembly with push pull tabs is designed for data center cable infrastructure, especially designed for 10G/40G/100G network module like 40G BASE-SR4. This cable assembly can be designed with 12 fiber cores in the MPO/MTP connectors on both sides.

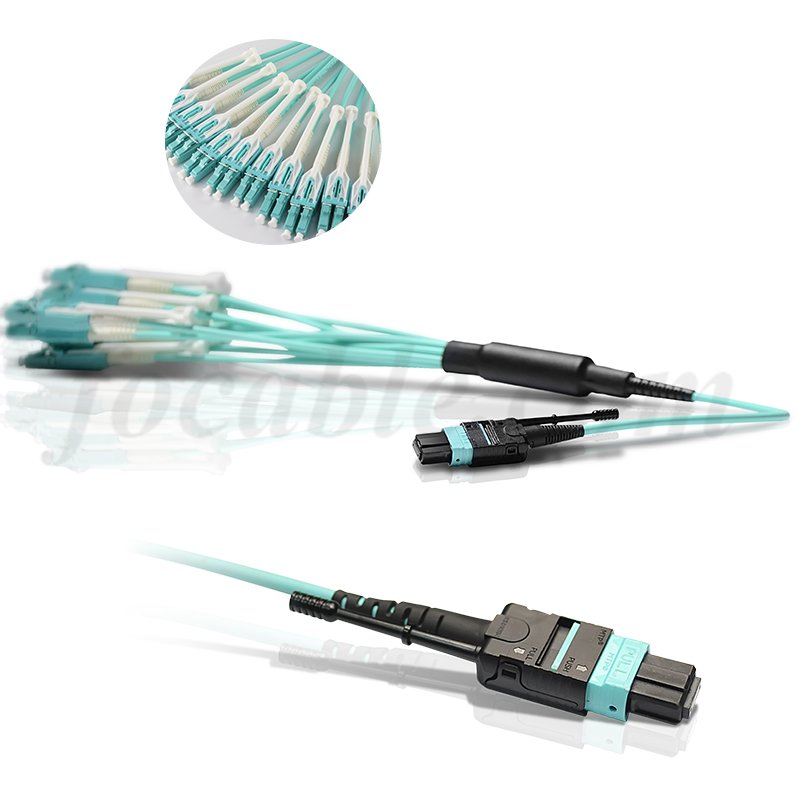

The high density MTP/MPO patch cable with push/pull tabs provides great advantages in size by offering up to 24 times the density when compared to the same size SC connector. Factory terminated and tested the multi-fiber MTP/MPO patch lead provides significant installation time savings. A push-pull design is utilized for easy mating and removal with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. These high-density cables are perfect when you have limited space and but still want that great fiber connection.
High density MTP/MPO with push/pull tabs fiber optic cable assemblies are essential components of data center networks, facilitating high-speed data transmission, ensuring reliable connectivity, offering flexibility and scalability, maintaining signal integrity, and enabling rapid network deployment.
The Push-Pull Tabs greatly simplify the use of MPO connectivity when manual access to the release slider and rear portion of the connector is restricted. This novel accessory for the expanding MTP brand product family enables easy insertion and extraction of MTP brand plugs in dense applications by providing a flexible extension tab which can be used to extract as well as insert the plug into the adapter port.
Connector | MPO/MTP | Fiber Mode | OS2/OM3/OM4/OM5 |
Polish Type | PC, APC | Cable Jacket | LSZH/OFNR/OFNP |
Fiber Count | 12F, 24F, 48F, 72F, 96F, 144F | Breakout Length | 0.5M |
Insertion Loss | SMF: ≤0.75dB (Standard) SMF: ≤0.35dB (Elite) | Insertion Loss | MMF: ≤0.5dB (Standard) MMF: ≤0.35dB (Elite) |
Return Loss | SMF: ≥ 60dB (APC) MMF: ≥ 20dB (PC) | Test Wavelength | SMF: 1310/1550nm MMF: 850/1300nm |
Attenuation at 1310nm | ≤0.4dB/km | Attenuation at 1550nm | ≤0.3dB/km |
Attenuation at 850nm | ≤3.5dB/km | Attenuation at 1300nm | ≤1.5dB/km |
Operating Temperature | -40~60℃ | Storage Temperature | -45~85℃ |
