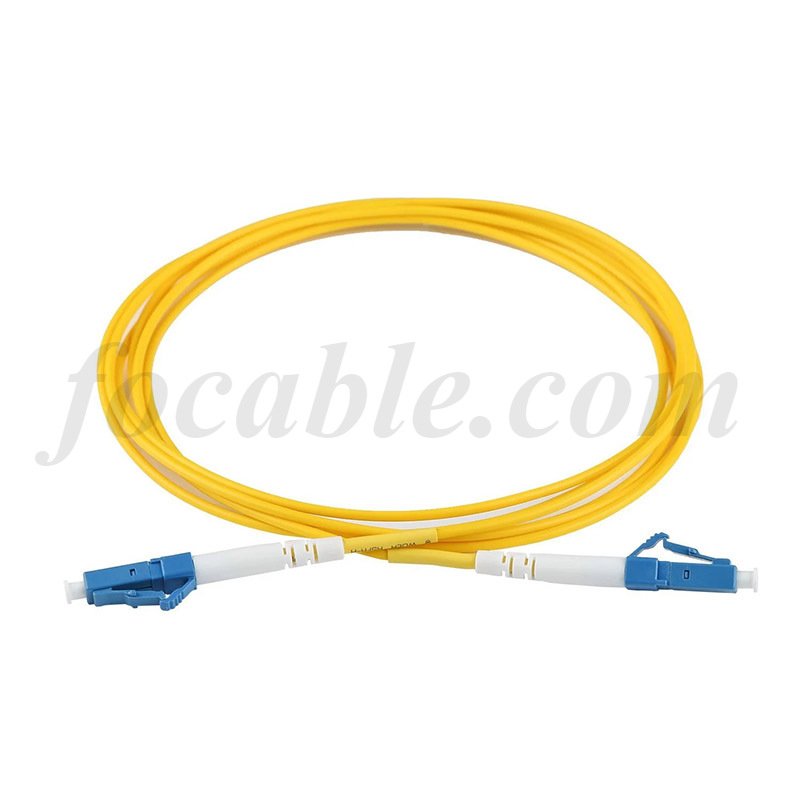

A optical fiber patch cord is a piece of fiber optic cable surrounded by a buffer and protective jacket with connectors at both ends that allow it to be conveniently connected to other optical devices. Fiber optic patch leads are designed for data center, enterprise, FTTx, LAN and WAN, CATV network, telecom network applications, etc. requiring quick infrastructure deployment such as main, horizontal, and zone distribution areas.
Fiber optic patch cables are ideal for a wide range of applications such as, high bandwidth, long-distance telecommunication network fiber applications. These patch cords are used for non-permanent connections between patch panels, transmission equipment, etc. Preassembled cables allow for the implementation of complete Plug & Play solutions. When such a solution is adopted with accurate dimensioning and appropriate cable routing, it is possible to install even large cabling systems rapidly. Types of cables include single mode, multimode, bend insensitive, indoor/outdoor, OS2, OM1, OM2, OM3, OM4 and OM5 fiber jumpers.
Connector Loss | ≤0.30dB | Interchangeability | ≤0.2dB |
Connector Return Loss | SMF: ≥ 60dB (APC) SMF: ≥ 50dB (UPC) MMF: ≥ 30dB (UPC) | Test Wavelength | SMF: 1310/1550nm MMF: 850/1300nm |
Attenuation at 1310nm | G.657.A1: 0.36dB/km G.657.A2: 0.4dB/km | Attenuation at 1550nm | G.657.A1: 0.22dB/km G.657.A2: 0.25dB/km |
Attenuation at 850nm | 3.0dB/km | Attenuation at 1300nm | 1.0dB/km |
Operating Temperature | -40~75℃ | Storage Temperature | -45~85℃ |

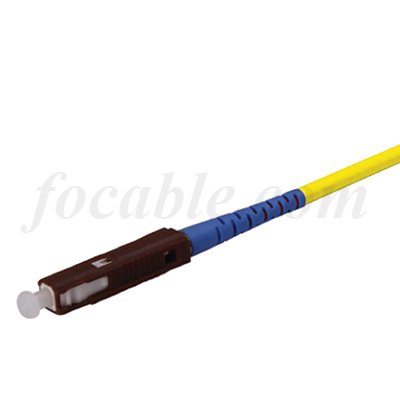

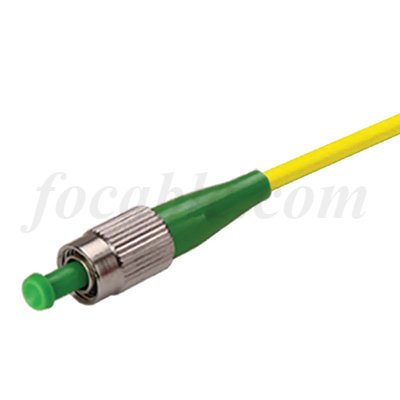

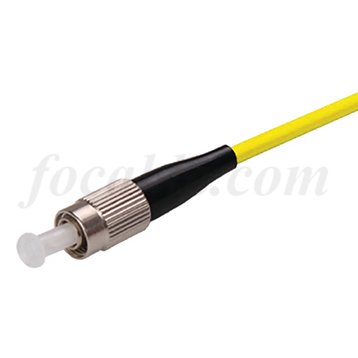

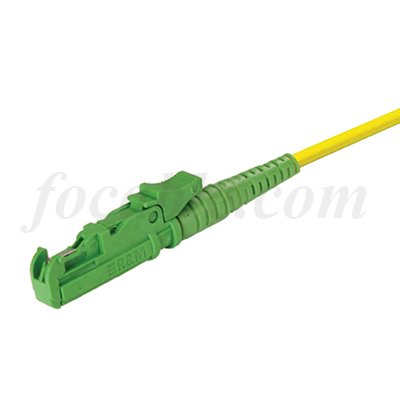

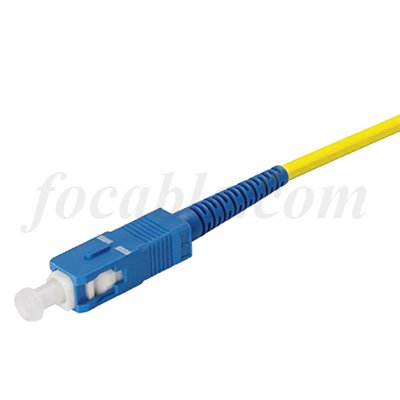

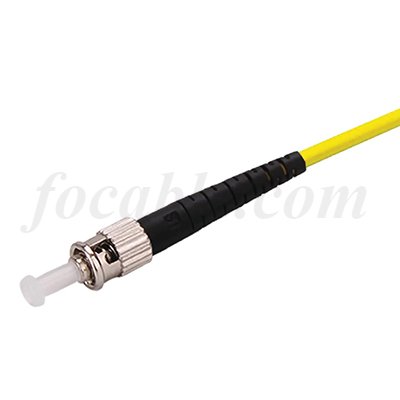

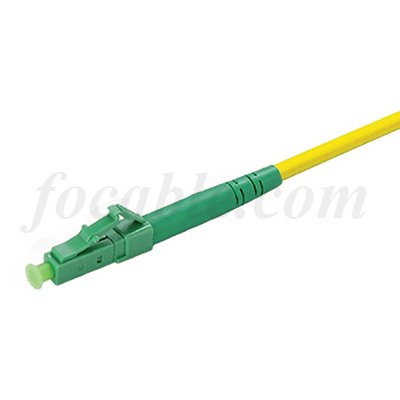

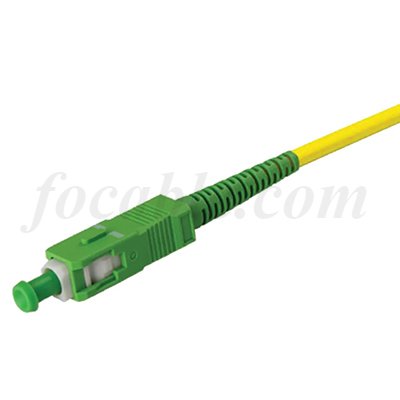

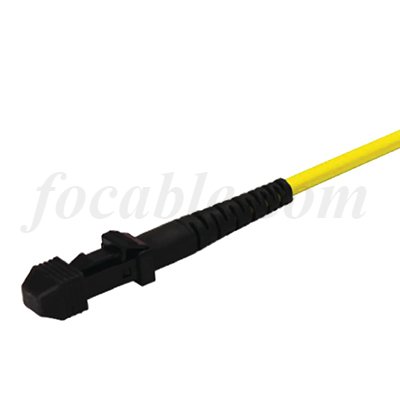

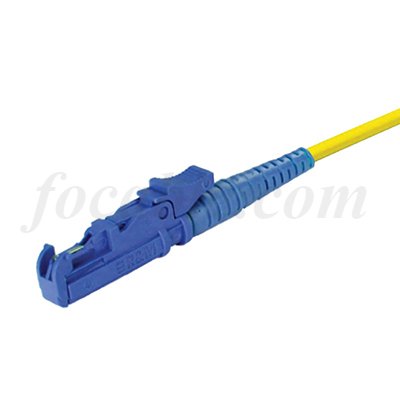

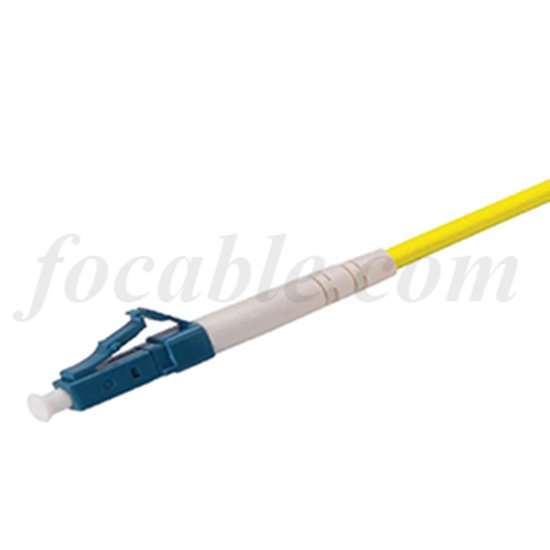

Connector Types | LC/SC/ST/FC/E2000/MTRJ/MU/MPO/MTP | Connector Ferrule | Zirconia Ceramic |
Fiber Type SM | G.652D/G.655/G.657A1/G.657A2/G.657B3 | Fiber Type MM | OM1/OM2/OM3/OM4/OM5 |
Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | Fiber Count | Simplex/Duplex |
Cable Outside Diameter | 0.9/1.6/2.0/3.0mm | Cable Jacket | PVC(Riser/OFNR)/LSZH/Plenum(OFNP) |
