Fiber Optic Connector is the device connected with two optical fiber cables. It is face to face precision connecting in order to make the transmission fiber coupled to the receiving fiber. To make sure the transmission system and performance stable, Fu Ou Ke supplies fiber optic connectors with industry low loss performance offering industry premium, repeatable optical performance and quality.
The fiber optic connector supports customization for single-mode or multimode fibers, simplex or duplex configurations, and various polishing types such as APC or UPC. It is compatible with 0.9mm, 2.0mm, and 3.0mm cable. This field-installable connector features a factory pre-polished ferrule, eliminating the need for hand polishing on-site. Ferrule end faces are polished according to the matched product type to achieve proper physical contact. The connectors are color-coded according to industry standards for easy identification during and after installation, making them ideal for optical cabling in buildings and floors and for LAN, CCTV, and FTTH applications.

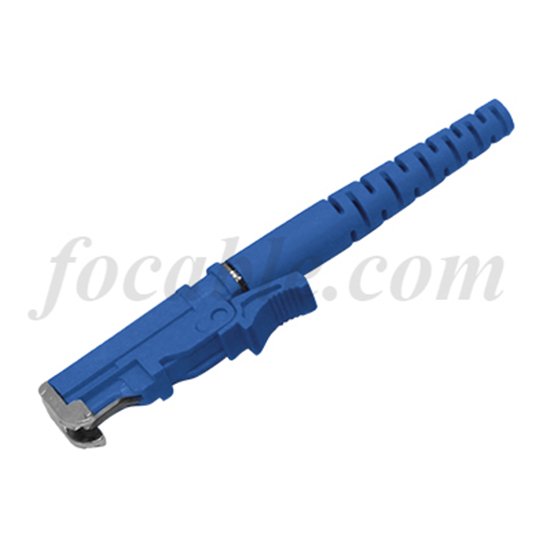

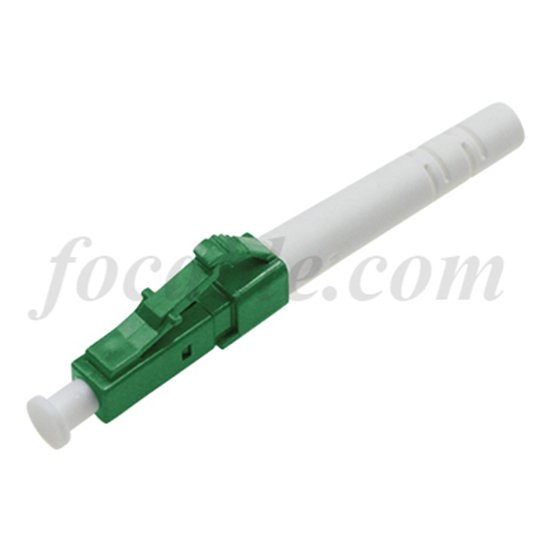

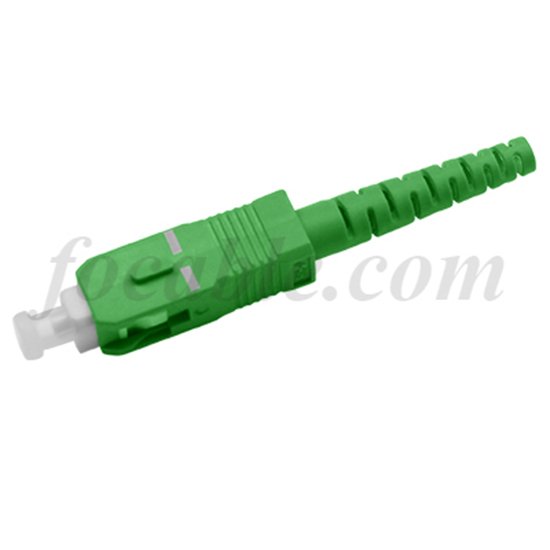

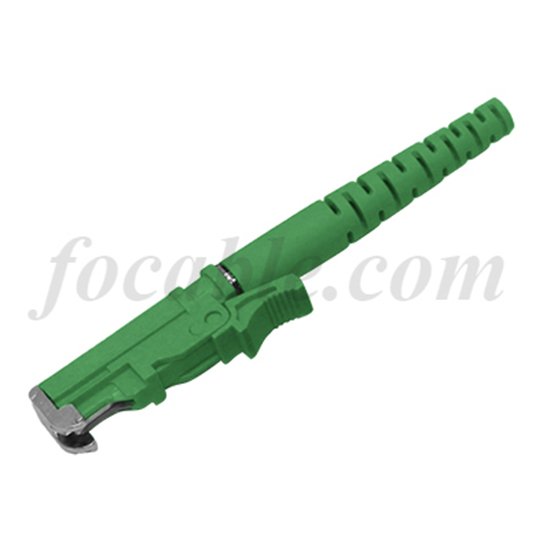

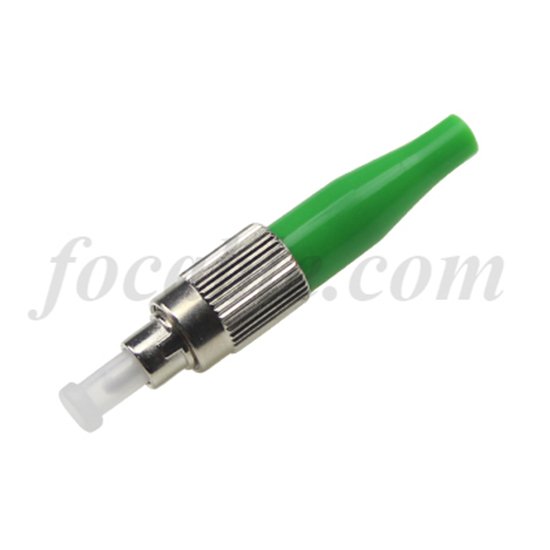

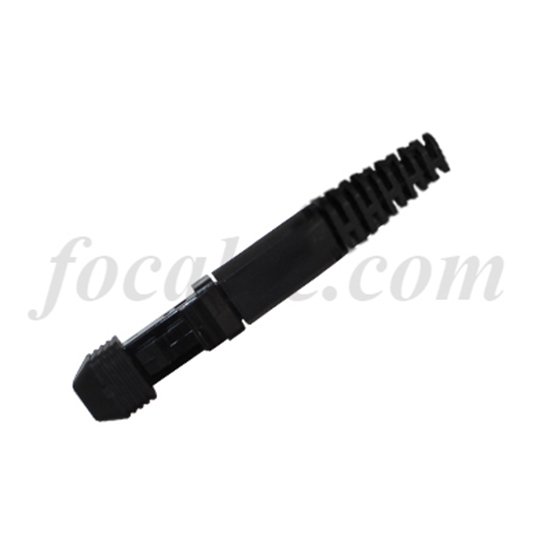

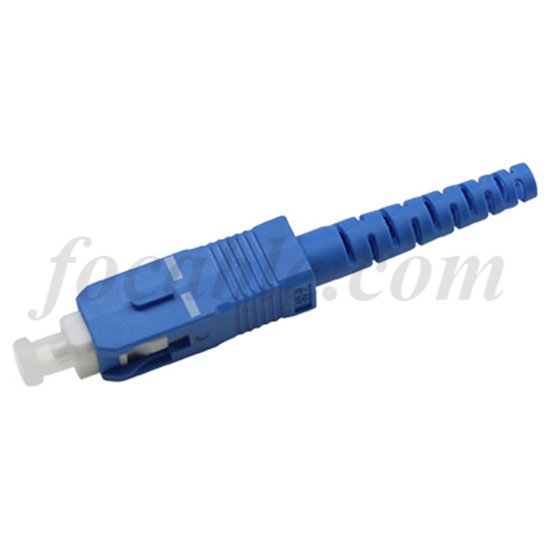

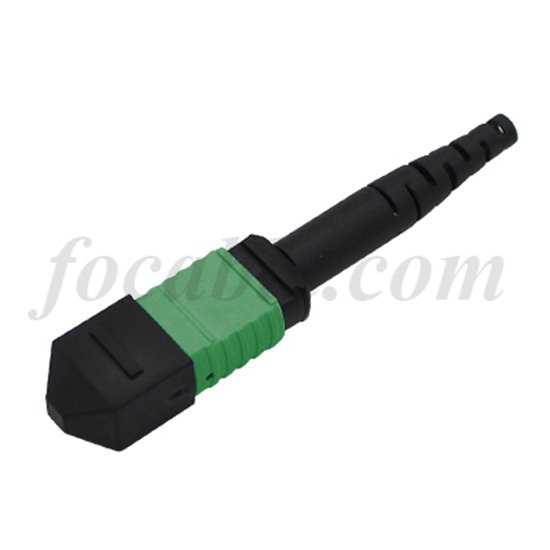

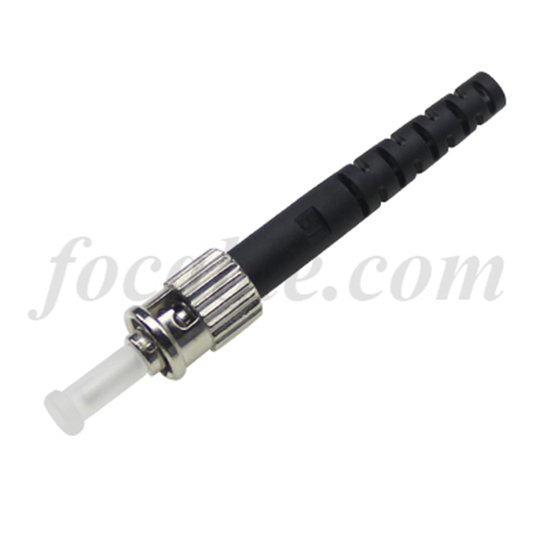

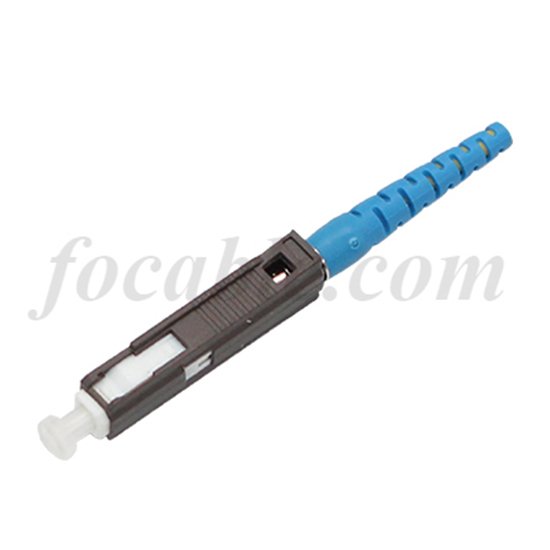

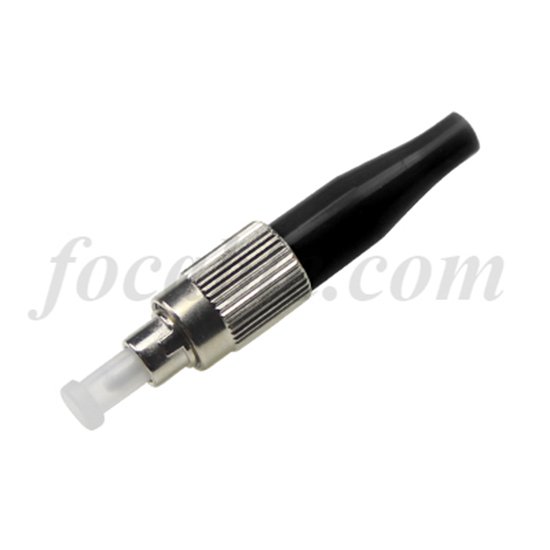

FU OU KE provides many types of fiber optic connectors, LC, SC, ST, FC, MU, MTRJ, MPO, E2000 connectors and so on.
Connector Type | LC/SC/ST/FC/E2000/MTRJ/MU/MPO/MTP | Connector Ferrule | Zirconia Ceramic |
Fiber Count | Simplex/Duplex | Fiber Mode | Singlemode, Multimode |
Insertion Loss | ≤0.30dB | Return Loss | SMF: ≥ 60dB (APC) SMF: ≥ 50dB (UPC) MMF: ≥ 30dB (UPC) |
Durability | <0.2dB typical change, 500 matings | Polish Type | UPC, APC |
Cable Suitability | 900 μm up to 3.0 mm | Boot Size | 0.9mm/2.0mm/3.0mm |
Operating Temperature | -20~70℃ | Storage Temperature | -40~85℃ |
